Add a PTC or Hose Barb Outlet to TDVR Variable Rate orifice to Unlock Rate Flexibility

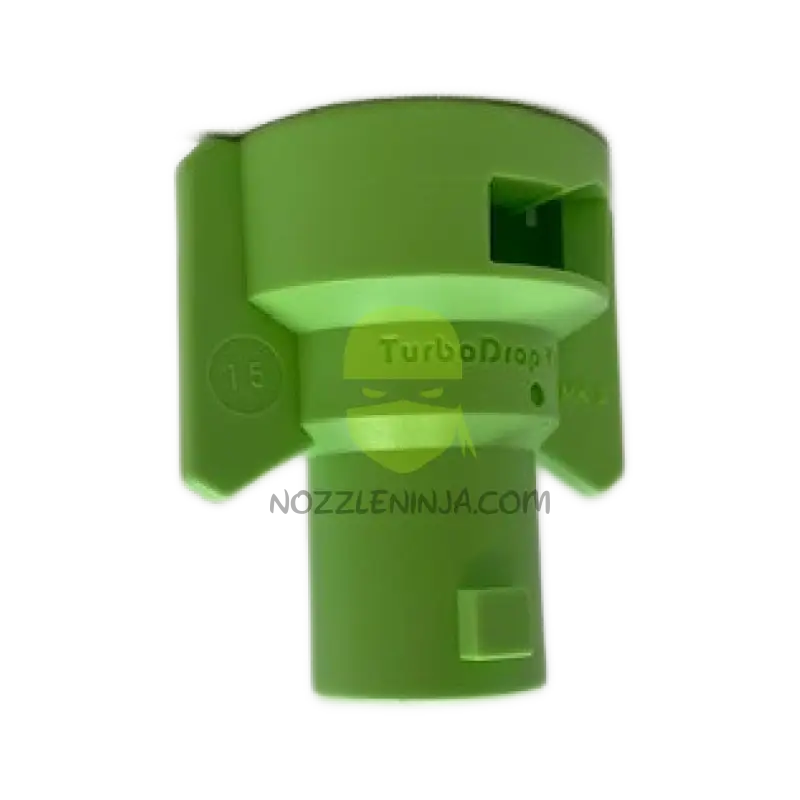

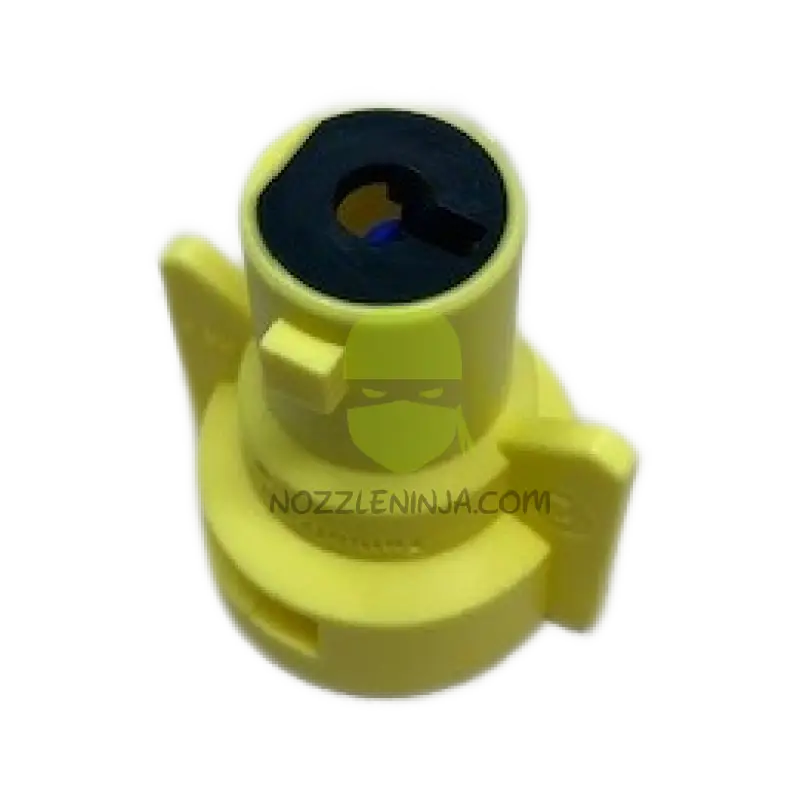

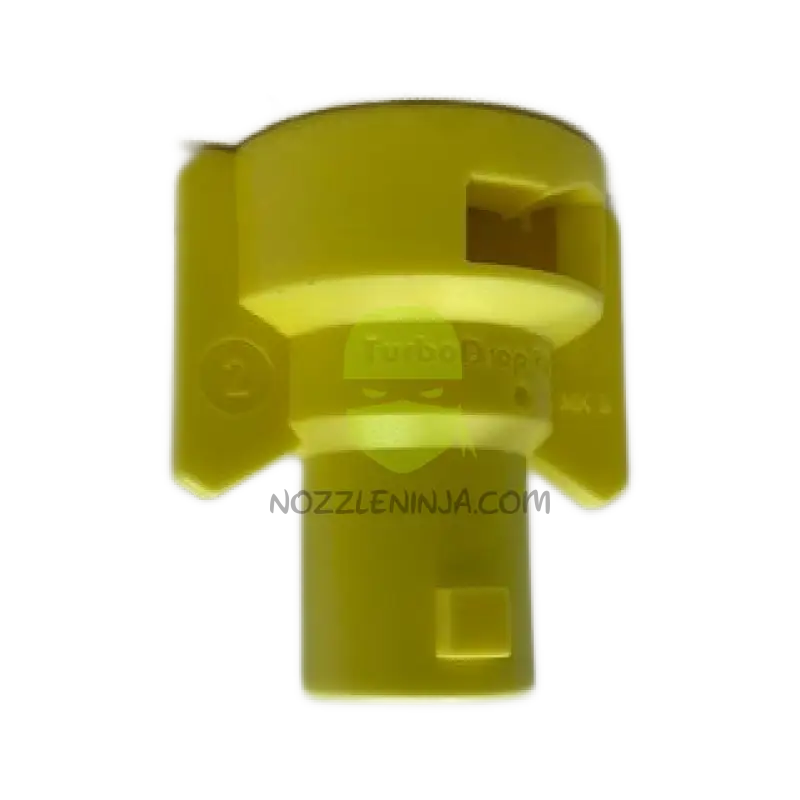

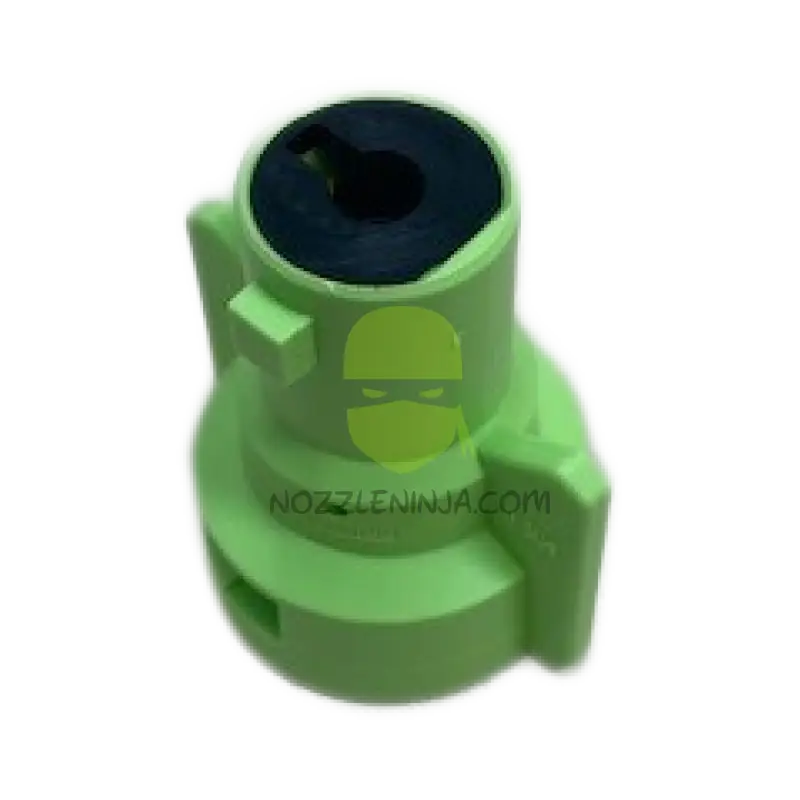

The TurboDrop® Variable Rate fertilizer nozzle is designed to apply liquid fertilizer at a four to five times flow rate range to allow for varying fertilizer
requirements of the target crop. It is available in a six hole streaming version (TDVRF) for use on standard sprayers, and a hose barb version (TDVRHB)
for tool bars, nitrogen applicators and other dedicated fertilizer rigs.
The TurboDrop® Variable Rate may be operated from 10-140 psi, allowing up to a five times rate change at a given speed. Additionally, the TDVRF and
TDVRHB can maintain a constant gpa rate over a five times speed change.
The TDVRF utilizes a six hole streaming tip in order to minimize potential leaf burn while maximizing fertilizer distribution, maintaining uniformity with
varying spray heights. The TDVRHB utilizes a 3/8” hose barb for ease of installation on fertilizer rigs, and acts as a variable-flow metering orifice. Check
valve design keeps flow accuracy to ± 5% in all versions.
The TDVRF and TDVRHB are “airless,” providing a wider operating range, and eliminating the possibility of fertilizer spitting from the side. The TDVRC
nozzle body is available as a stand alone product that can be integrated into custom fertilizer systems.
Pressure Range: 10-140 psi Materials of Construction: Polyacetal, EPDM, stainless steel
