Features & Benefits
-Intuitive menu-driven backlit display
-Impact resistant Lexan™ faceplate
-Accuracy +/- 0.5% with manual field calibration
-Extended battery life with use of 4 “AAA” alkaline batteries
-Plumbed both for in-line and 90-degree applications
-Full port with industry standard manifold M100 flanges
-Works with non-conductive material
-Includes a 2-year Warranty & Maintenance Program
How it Works

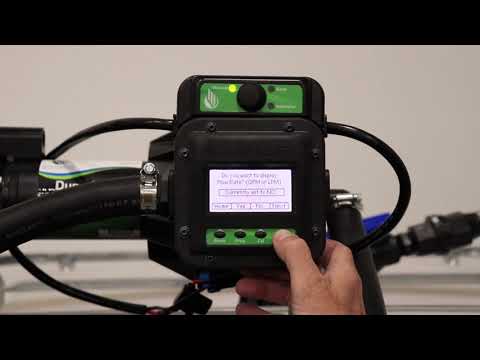

1. Turn meter screen on by pressing any button, the “Power” light will be on if connected to power. 2. Press Auto 3. Set Amount 4. Press Start (this puts meter into Auto-Batch mode, “Run” light will come on)
Operating Temp: -10° F to 130° F, -23° C to 54° C
Flow Rate: 2 to 20 GPM, 7.5 to 75.7 LPM
Size / Connection: In: 1″ FNPT x 2″ MNPT; Out: 1″ FNPT
Meter Accuracy: + / – 0.5%
Backlit Display: Yes
Maximum Pressure: 40 PSI
Materials: GF Polypropylene; 304 Stainless Steel, Ryton, EPDM, Viton® or Silicone Seals
