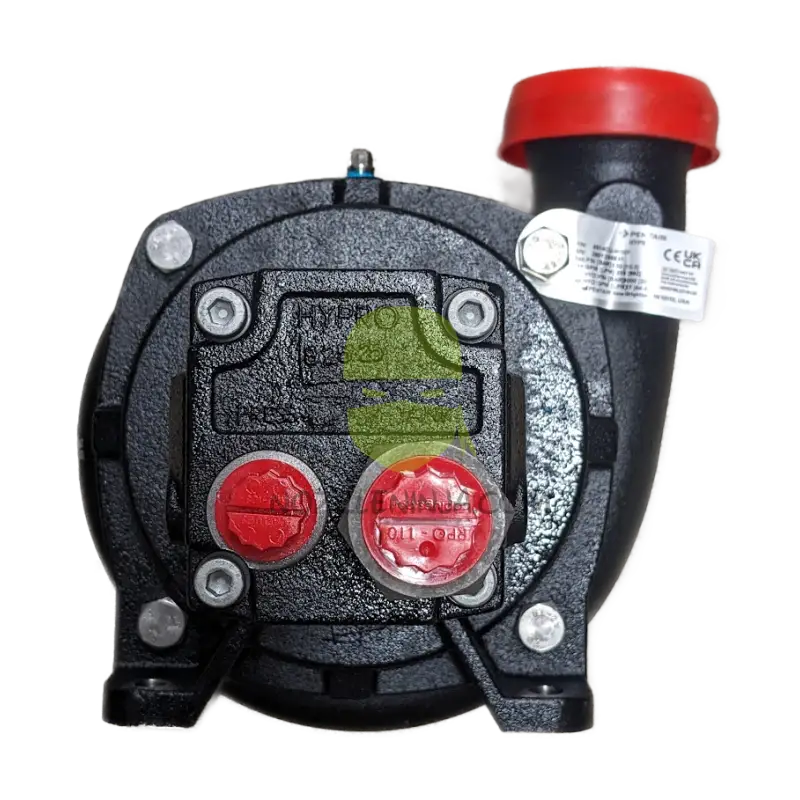

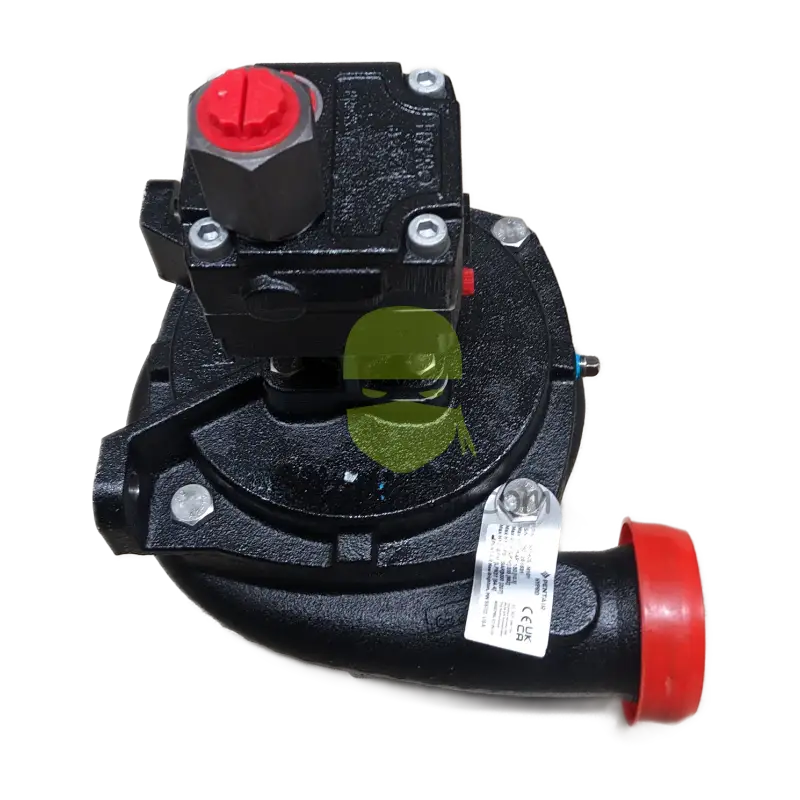

9314CU-M10Y - Force Field Seal M220XM220 With Case Drain Hydraulic Centrifugal Pump

-Substitute for Late Model New Holland Guardian Sprayers with Case Drain. (Hydraulic Fitting Adaptors and re-orientating the Pump outer face may be required.

Force Field Wet Seal can be run dry without downtime and greatly increases seal life 2" Full port Universal Flange Inlet/Outlet Cast iron Housing GTX Impeller

M220 Flange Inlet and Outlet

Por For Case Drain on Pump Hydraulic motor

Recommended Hydraulic Flow:15-17gpm

Max Flow:233 gpm

Max Psi:150

Force Field Features & Benefits

- ForceField Technology is a superior wet seal technology that provides the ultimate protection for the mechanical seal and avoids costly downtime

- Protects the mechanical seal against common failures related to dry run and chemical bonding by using a barrier fluid to keep it cool and lubricated

- Actively maintains a pressure differential between the barrier fluid and the pumping solution, which results in longer life and worry free operation

- Designed to be a drop-in replacement for standard Hypro hydraulically driven centrifugal pumps -One year warranty covering pump, motor and seals

-Substitute for Late Model New Holland Guardian Sprayers with Case Drain. (Hydraulic Fitting Adaptors and re-orientating the Pump outer face may be required.

-Pump is used on many late model self propelled sprayers with either threaded or flanged inlet and outlet, and a Case Drain Hydraulic line, without OEM speed or pressure sensors
