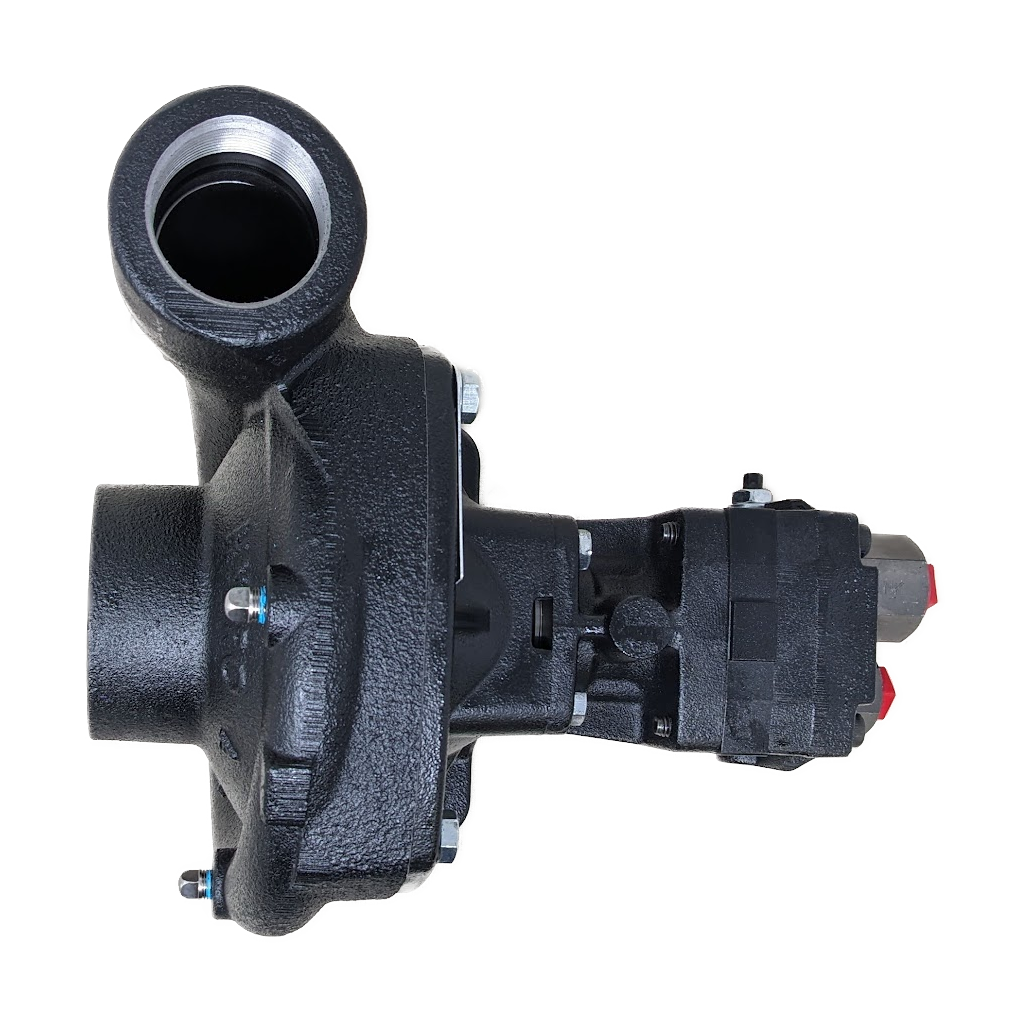

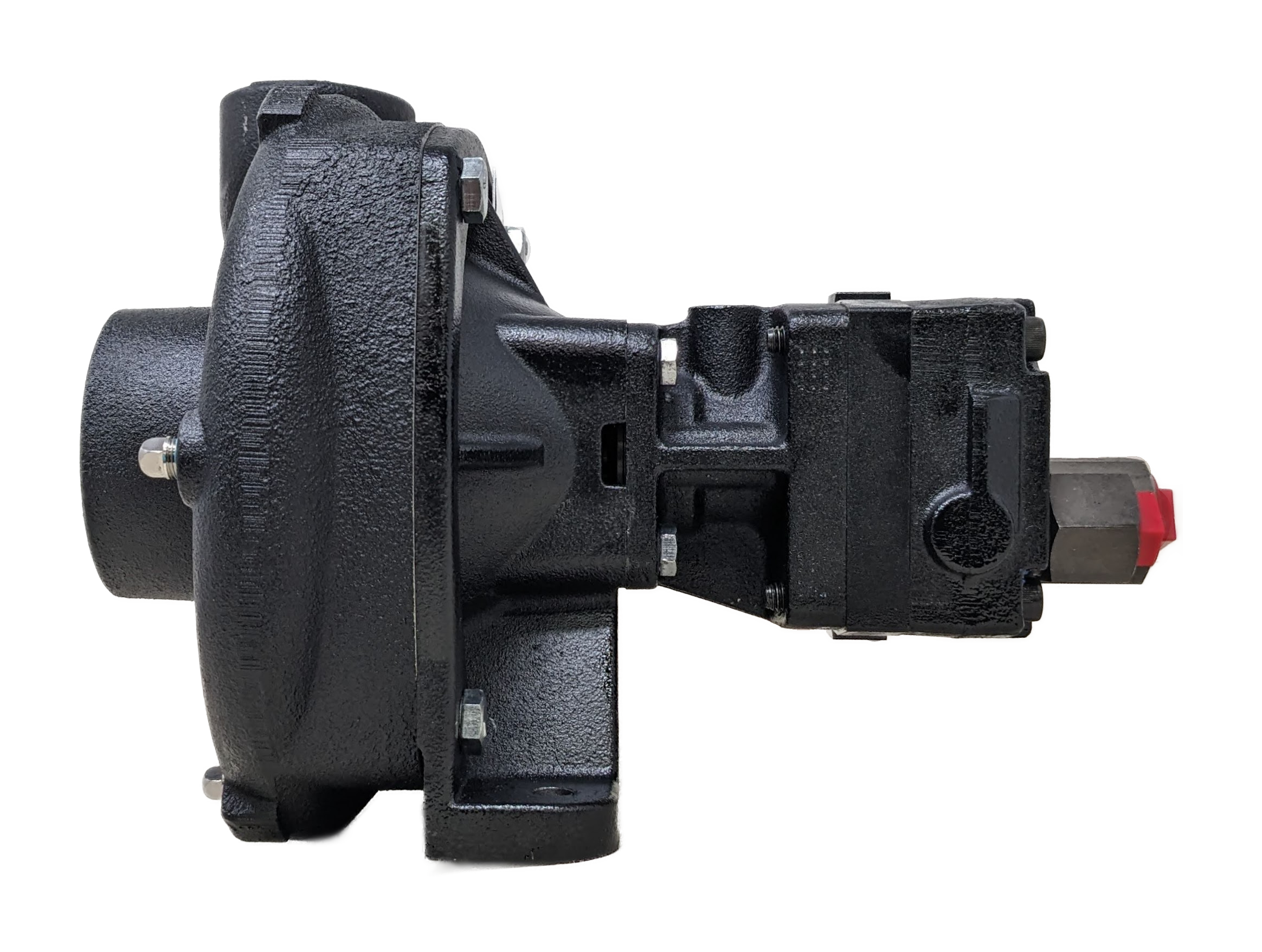

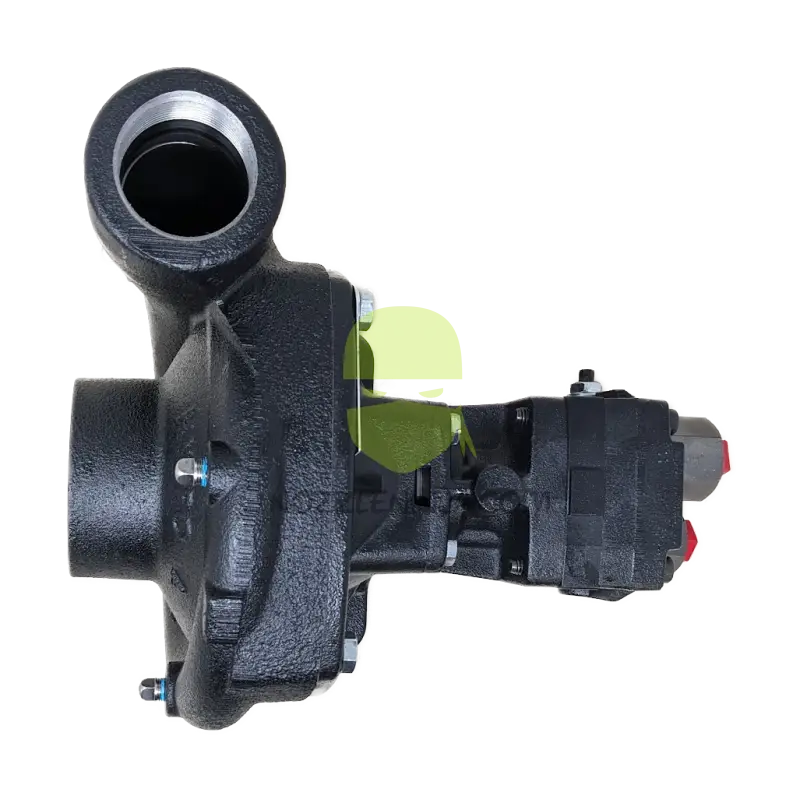

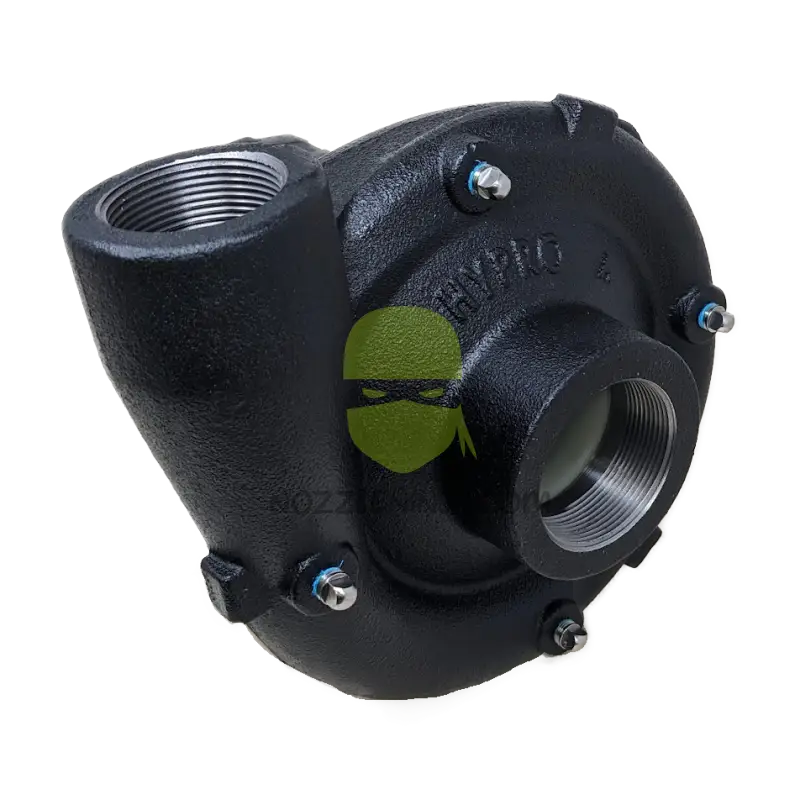

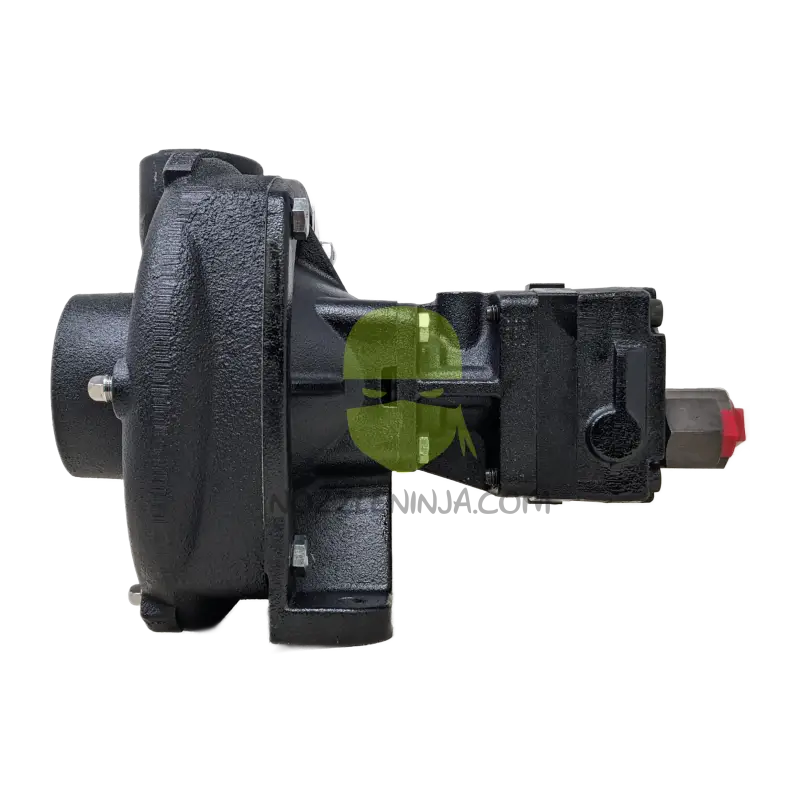

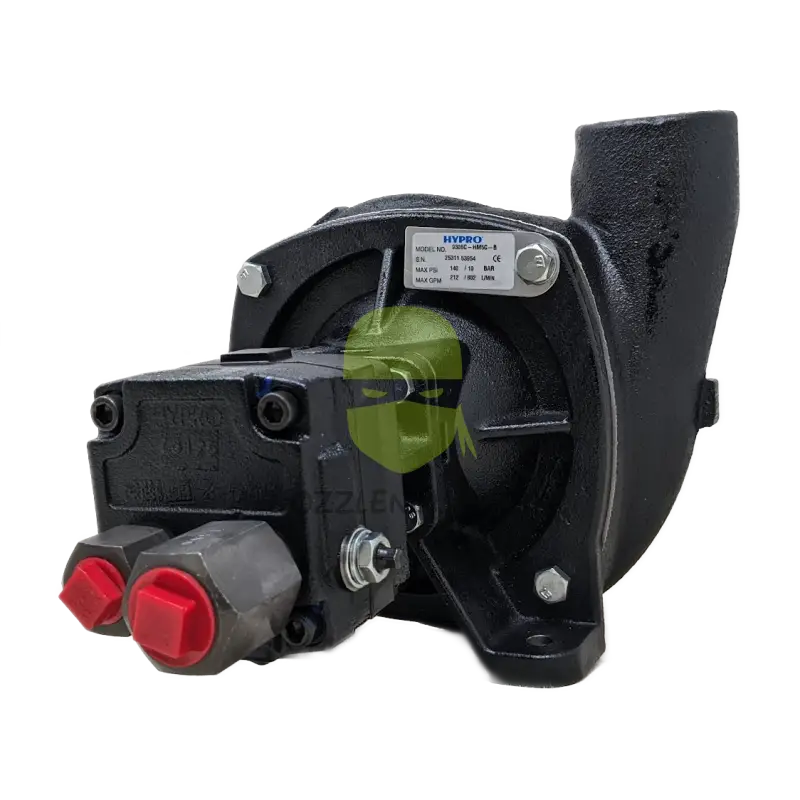

9306C-HM5C-B Solution Pump

Product Description
$1,545.00 CAD $1,825.00 CAD
Maximum quantity available reached.

-Direct Replacement for John Deere AN206042 with Life Guard Silicone Carbide Seals.

-AN206042 is used on all 4730, 4830, 4720, and 4710 Serial Numbers ending above 4000

-Pump is used on many late model self propelled sprayers with either threaded or flanged inlet and outlet without OEM speed or pressure sensors

-Agco AG520320 with Bypass For Rogator 64/74 series up to 2008 Standard flow

-Agco 579304D1 Without Bypass Standard Flow RG900/RG1100/RG1300 without pump sensors

-See other variations for Flanged, Stainless Steel, and Force Field wet Seal Variations

Hydraulic motor drive (for open center, closed center and load-sensing systems)
- Port sizes: 2" NPT inlet, 1-1/2" NPT outlet; (220 x 220 (U) Universal flange available)
- Max. fluid temperature: 140°F/60°C
- Available in cast iron and 316 stainless steel for extended pump life
- Impeller: Nylon (cast iron models); polypropylene (stainless steel models); (GTX available)
- Motor: internal gear gerotor
- Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet
- Max. motor psi: 3000 (bar: 207)
- Pump seals:Life Guard silicon carbide
- Life Guard seals are the industry standard on OEM equipment
- Hydraulic motor seal: double-lip Teflon and case drain available
- Weight: 33 lbs./15 kg

 9306C Pump Parts

Sku: 9306C-HM5C-B
Vendor: Hypro
