The 1″- 3″ High-Flow Dura-Meter™ is made of impact resistant Lexan™ faceplate, so it holds up to the toughest treatment. It can also can withstand impacts common in the agricultural market and beyond. & Made with 100% moisture-sealed circuitry, the meter is impervious to water intrusion.
The 1″-3″ High-Flow meter can be calibrated to achieve + / – 0.5% accuracy and significantly reduce Straight Inlet / Outlet requirements. & The (2) 9V batteries provide power that allows you to stay in the field longer. It is over-molded with Santoprene and filled with gel, so the face-plate has improved shock resistance.

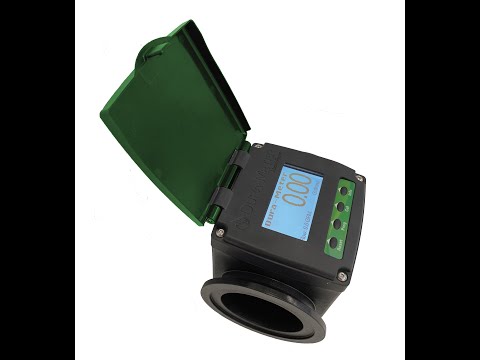

The 1″-3″ High-Flow Dura-Meter™ uses an industry leading menu driven backlit display, so it is the easiest of all chemical meters on the market to use in all light conditions. & Also, it is plumbed both for in-line and 90 degree applications, adding to its versatility. In addition to the rich features, a 2 Year Maintenance Program and warranty come standard. It is available with EPDM, Silicone, and Viton® seals.
Features & Benefits
-Intuitive menu-driven backlit display
-Impact resistant Lexan™ faceplate
-Accuracy +/- 0.5% with manual field calibration
-Full port with industry standard manifold M220 or M300 flanges
-Works with non-conductive material
-Counts flow in either direction
-Includes a 2-year Warranty & Maintenance Program
Operating Temp: 32 degrees F to 140 degrees F
Flow Rate: 2″ = 40 to 300 or 3″ = 80 to 700 GPM
Size / Connection: 2″ M220 Flange or 3″ M300 Flange
Meter Accuracy: + / – 0.5%
Backlit Display: Yes
Meter Type / Style: Paddlewheel
Body Materials: GF Polypropylene; EPDM or Viton® Seals
